INSUL - Predicting Sound Insulation

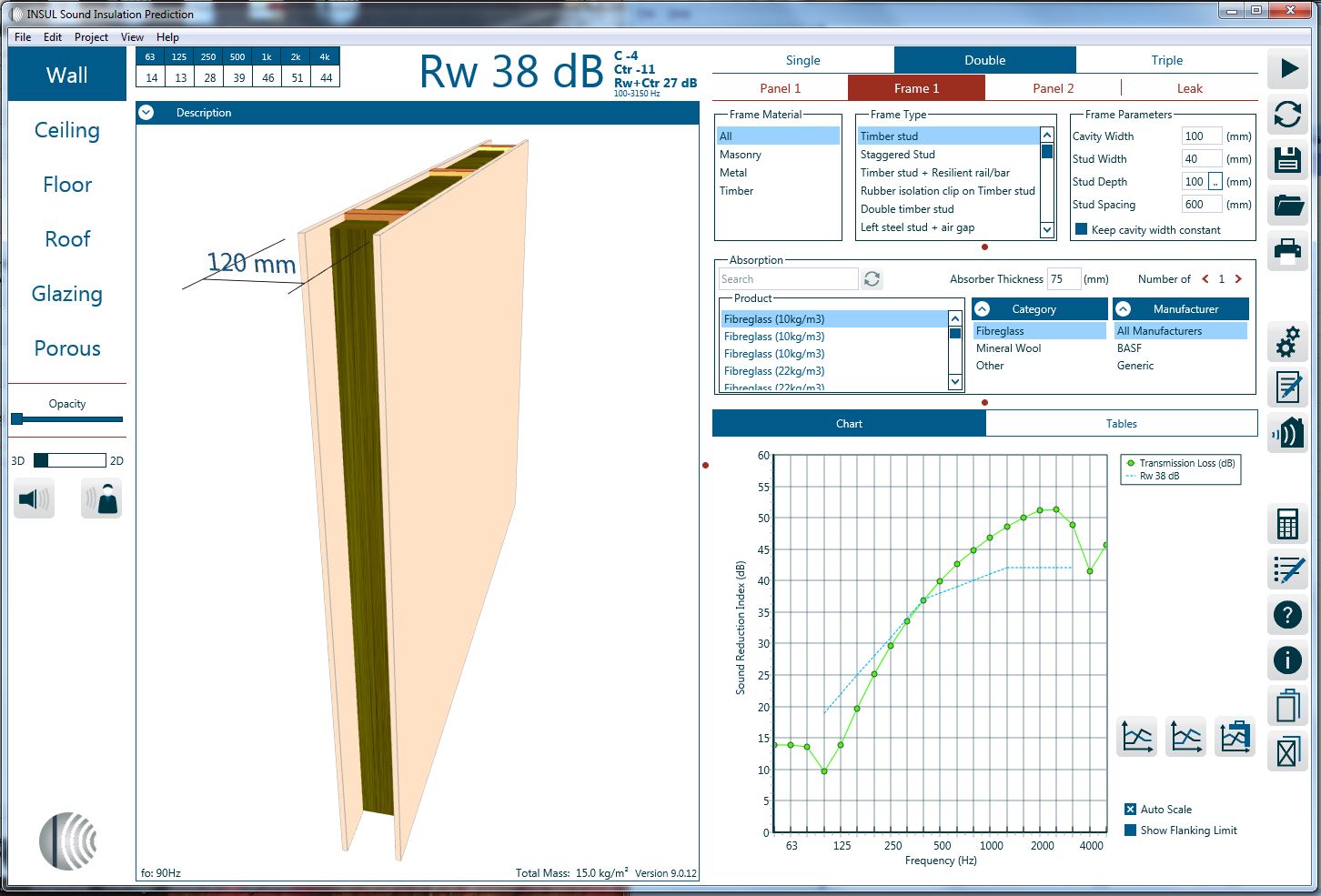

INSUL is a program for predicting the sound insulation of walls, floors, roofs, ceilings and windows, impact sound of floors and rain impact noise on roof. The programme can make good estimates of the Transmission Loss (TL) or Impact Sound (Ln) in 1/3 octave bands and Weighted Sound Reduction Index (STC or Rw) or Impact Rating (IIC/LnTw) for use in noise transfer calculations or acoustical design or specification.
INSUL can be used to quickly evaluate new materials and systems, or to investigate the effects of changes to existing designs. It models materials using well known elastic plate theory including allowances for thick panel effects as published by Ljunggren, Rindell and others. More complex partitions are modelled using work by Sharp, Cremer and others.
